LOCOMOTIVE HANDRAIL

Locomotive Safety Handrail

Locomotive Work Safety Handrail

Diesel Shop Running Board Handrail Safety

Looking for the price of our SH10267M Locomotive Handrail? Feel free to reach out to us for the details.

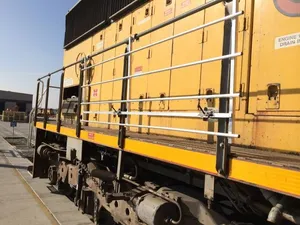

What’s special about it? This handrail is an add-on that easily attaches to the existing ones on the outside of a locomotive. It’s designed with four extra horizontal bars that create a clear visual cue, helping workers be aware of their surroundings when they’re kneeling or lying down on the running board for maintenance tasks.

Concerned about space? Don’t worry. The design is smart—it doesn’t take up any extra room where people walk, and it won’t interfere with the opening and closing of the locomotive’s doors.

Now, let’s talk specifics. The handrail measures 36 inches in height and 96 inches in length. It includes two aluminum clamps, three vertical supports, and four horizontal bars that close off any open spaces for added safety.

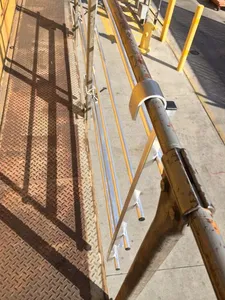

For installation, two adjustable clamps are provided, making it simple to secure this handrail to the existing vertical poles on the locomotive.

Do you need to go above the locomotive handrail? Take a look at our vertical handrail Click HERE.



SKU# SH10267M Locomotive Handrail

Weight: 15 Pounds
Base Construction Material: 6061 Aluminum Alloy Approx. 36″ High and 96″ Long DESCRIPTION: This rail is used on the existing locomotive handrail to provide fall protection between the handrail stanchions. It has no other intended uses.

1. Inspect the Handrail Gate prior to use. Make sure there are no broken welds and the Rail Hangers and Stanchion Clamps are in place and in good condition.

2. Place the Safety Rail over the Locomotive handrail on the outside of the handrail to allow room for Car Body door operation.

3. Handrail hangers allow for bolt or detent pin to lock into place. And then the adjustable Stanchion Clamps must be moved into place and secured tightly.

Contact Blue Steel to Order.

800-377-2109
