5S Tool Cabinets

5S Tool Cabinets with pegboard

Tool Cabinet with galvanized pegboard and sidewalls. Padlock provision to secure 5S control of the box.

Do you have tool accountability in your shop?
5S Tools and Visual Management

SCROLL DOWN

FOR MORE PHOTOS

Maybe you need open pegboard panels so to check it out, click HERE.

Installing lockable and heavy-duty tool cabinets are a massive step in achieving your Lean Management Goals.

If you do need a heavy-duty Blue Steel Industry Standard tool cabinet then here are the specs.

Industrial Grade Fabrication

First, let’s talk about the shell or box.

The 5S Tool Cabinet shell is fabricated 12 Gauge Steel, fully welded and boxed together, and this provides excellent strength to the cabinet.
The sheet metal is CNC punched in the flat pattern to make sure everything lines up correctly when assembled.  The cabinet must be secured to a heavy-duty stand, wall-mounted or mounted to a workbench. We provide six, 3/8″-16 nut inserts on each side for mounting even the optional canopy for outdoor use.

Second, the doors.

We also punch the doors and form and fit it to the cabinet to ensure smooth movement.  The doors have clear 1/4″ thick poly-carbonate inserts for a quick visual audit of tools.  Each sliding door has two slides rated at 300 lbs each so that the doors are durable and have smooth movement. The doors have padlock tabs so you can apply your tool control padlock.

Third, the interior.

The back and side walls are 12 gauge galvanized pegboard securely welded in place this will give you the maximum versatility for storage space. This heavy-duty set up will support hundreds of pounds of impact guns, sockets, pipe wrenches, and everything else you may need.

Fourth the finish.

The cabinet and doors are powder coated with zinc-rich primer, and a Safety Yellow coated surface, that is going to give our storage cabinet excellent corrosion resistance.  The galvanized pegboard is already corrosion resistant and is not painted to ensure the hangers fit correctly.

Achieving your Lean Management Goals

After installing these cabinets and design your most efficient layout, you may want to have a shadow board graphic painted or applied for a quick visual accounting of the tools. You have a padlock provision if you desire to have key control of the cabinet.  Supervisors have easy visual management to verify that the tools are all returned and secure at the end of the shift.

The Blue Steel heavy-duty tool cabinet provides the storage solution for your next step to implementation of your 5S visual management in your shop.
We have hundreds of these units in place inside of repair shops and to store tools in outdoor storage areas.

Industries Moving Fast toward Lean Manufacturing and 5S implementation

Oil Industry
Power plants
Marine/Ship repair
Earthmoving equipment
Dept. of Defense Equipment repair
Railyards
Aerospace
Truck Repair Stations
School Trade Shops

If you have a 5S plan for your company, we can help with our tool storage solutions.

We have customers using these boxes for

Power tool storage
Hydraulic ram storage
Hand tool storage
Reduce replacement part theft.
Tool Charging stations
And many more.

For more information about our heavy duty tool storage products give us a call.

800-377-3109 sales@bluesteelco.net

Catalog # SH10250M 8″ deep x 40″H x 40″W Outside Dimensions
Catalog # SH10251M 8″ deep x 40″H x 52″W Outside Dimensions
Catalog # SH10252M 8″ deep x 40″H x 76″W Outside Dimensions

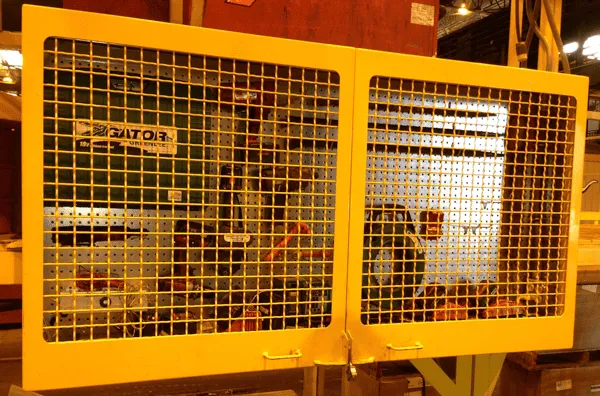

72 inch Heavy Duty Tool Cabinet with Wire Mesh Doors
Pegboard 5S Tool Cabinet
5s Tool Cabinet with Peg Board
Steel round hole pegboard tool cabinet
5S Tool Cabinet

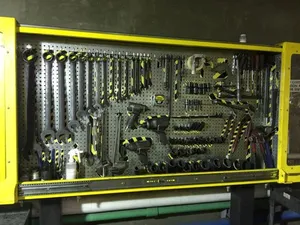

Your workers will have easy Access to all tools stored on back and side pegboard panels

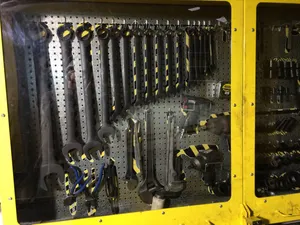

72″ Heavy Duty 5S Tool Cabinet, Pegboard is available in round or square hole configuration.

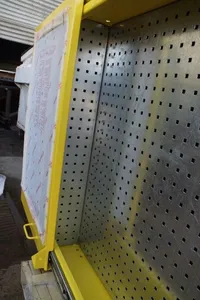

12 gauge galvanized Square hole pegboard.   Square Hole accessories can hold larger tools.
72inchShipment

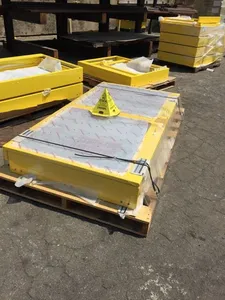

72-inch Tool Cabinet ready for shipping and take care that your cabinet is not damaged while in transit.
OutBoundForkBox2
Forklift movable box with wire mesh, poly-carbonate, and canopy so you can place it anywhere in your yard for secure outdoor storage.
SH10249MFULL

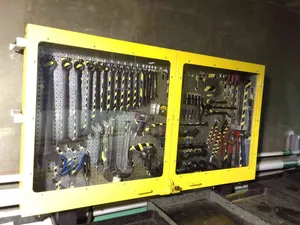

72-inch wall mounted cabinet with tools
SH10249M2

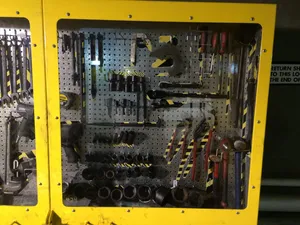

Round hole pegboard and accessories to hang almost anything you can imagine.
