Collapsible Stair Rail for Service Pits

The Blue SteelCo collapsible stair rail (often searched as a “collapsible pit handrail”) is a welded steel stair rail for service pit stairs. Its top rail is 34 inches high, so it serves as the handrail under the stair rail and handrail criteria in OSHA 1910.29(f). It locks upright for crews using the pit stairs, then folds below the floor plane in under 60 seconds when a locomotive or vehicle needs to move over the pit. Blue SteelCo has built them in Waxahachie, Texas since 2008.

What OSHA Says About Stair Rails and Handrails

OSHA’s interim enforcement guidance of February 26, 2026 (osha.gov) covers stair rail systems installed before the effective date of any new final rule. For those systems it states that a top rail “not less than 30 in and not more than 38 in” high “can also serve as a handrail, provided it meets the other handrail requirements of paragraph (f).” Where a top rail exceeds 38 inches, for example to meet the 42-inch minimum in the 2016 rule at 1910.29(f)(1)(ii)(B), the handrail must be separate and 30 to 38 inches high. The memo “becomes invalid on the effective date of any final rule resulting from the 2021 NPRM.”

What this means for your facility: a 34-inch top rail is inside the 30-to-38-inch range, so under the interim guidance it can serve as the handrail on the pit stairs. That is OSHA enforcement discretion, not a new final rule, and it is not an OSHA approval or a product certification. The rail must still meet the other handrail requirements of 1910.29(f), and your compliance officer or authority having jurisdiction decides how the rule applies to your pit.

Pit Edge Fall Protection Is a Separate Question

Under OSHA 1910.28(b)(1), a walking-working surface with an unprotected edge 4 feet or more above a lower level requires fall protection. OSHA 1910.28(b)(6) allows a limited exception for repair, service, and assembly pits less than 10 feet deep, but only when the employer marks the pit edge, posts caution signs, and trains every employee who works near it. OSHA cited a steel mill under 1910.28(b)(6)(i) for exactly this exposure; we covered that case in OSHA Pit Fall Protection Requirements: Steel Mill Cited.

The collapsible stair rail is a stair rail for the pit stairs. It is not a guardrail, and it does not answer the pit edge fall protection question under 1910.28(b). Treat the two separately when you plan the pit.

The Problem With Fixed Rails at a Working Pit

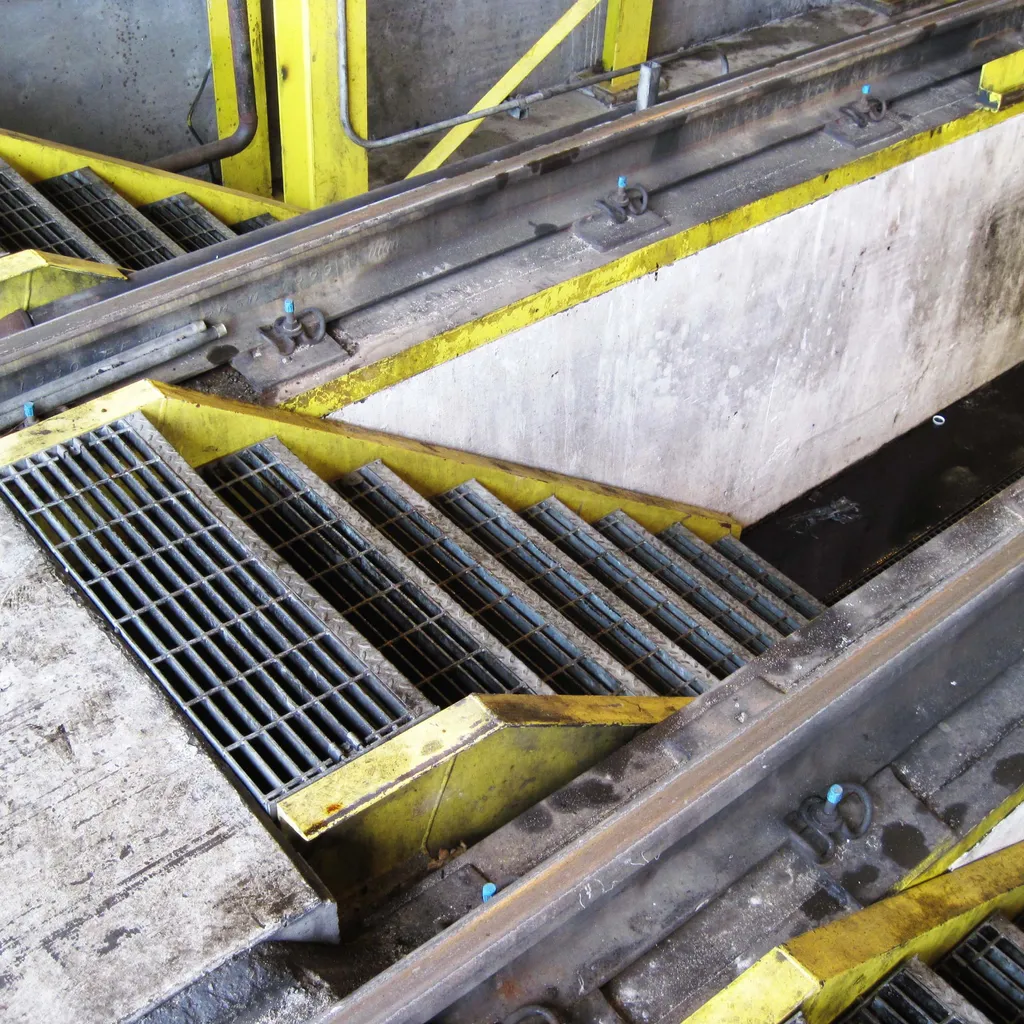

A fixed rail at a service pit stops the very thing the pit exists for: rolling equipment over it. So shops improvise with removable stanchions that take two workers and five minutes to reset, or nothing at all once the rail sections end up stacked against a wall. A rail that is hard to put back is a rail that stays down. That gap between the equipment you own and the rail that is standing is where injuries and citations happen.

How the Collapsible Stair Rail Works

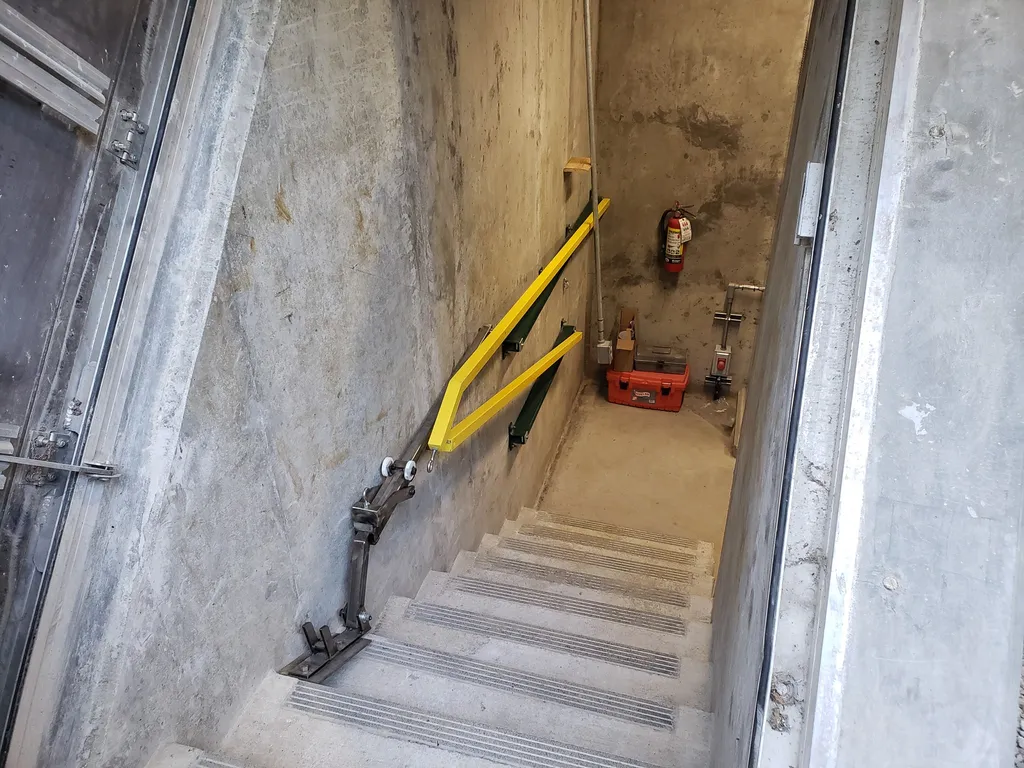

The Blue SteelCo collapsible stair rail mounts to the pit stair stringer and pit wall, with no structural modification to the pit itself. When crews use the pit stairs, the rail stands at its 34-inch top rail height. When equipment needs to move over the pit, one worker folds the rail below the floor plane in under 60 seconds. No pins, no bolts, no lifting rail sections off their posts.

• Top rail height: 34 inches, so the top rail serves as the handrail under OSHA 1910.29(f)
• Locking: stainless steel mechanism engages automatically, with no pins or bolts
• Motion: PTFE chemical-resistant roller guides, powder-coated steel construction
• Deployment: raised or lowered by one worker in under 60 seconds
• Fit: custom-built to your exact pit dimensions (part CHS10101M)

The advantage is behavioral as much as mechanical: workers deploy a rail that takes 60 seconds and no lifting, so the rail is standing when it is needed.

Configurations and Pricing

Two standard configurations, both made in the USA. Blue SteelCo is the designer and sole manufacturer of the Blue SteelCo collapsible stair rail:

• Service Pit Stair Rail — left-hand or right-hand exit variants for locomotive and vehicle service pits
• Pump Station Stair Rail — collapsible rail for pump station and below-grade equipment access

Volume pricing is available. Stair rails ship by freight; call for a shipping quote.

Related Safety Equipment

The stair rail works alongside the rest of your shop’s safety equipment: aluminum pit crossover bridges for passage over open pits, locomotive work platforms for elevated access, and blue flag protection for on-track work. Browse the full range on our industrial safety products page.

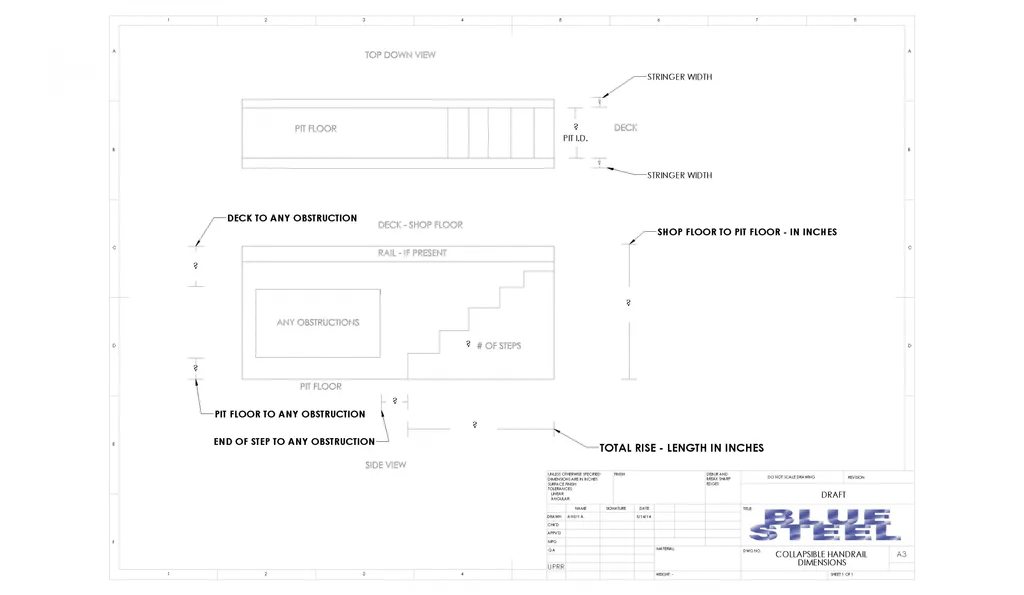

Get Your Pit Dimensions Quoted

Send us your pit stair count and tread dimensions and we’ll quote the right configuration, or order directly at bluesteelco.com. Call 800-377-2109 or use the form below.
